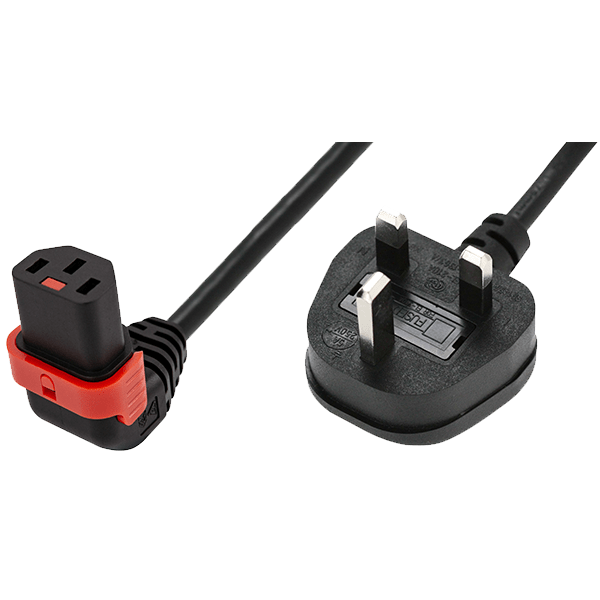

UK 5A Plug to C13 Lock+ ‘Up’ Connector 1.00mm² – 1 Metre (PC2030)

UK 5A Fused Moulded Plug to C13 IEC Lock+ ‘Up’ Connector 3G 1.00mm² H05VV-F Cable Black – 1 Metre.

UK 5A Fused Moulded Plug to C13 IEC Lock+ 'Up' Connector 3G 1.00mm² H05VV-F Cable Black - 1 Metre.

  • Quick connect from single terminal
  • Class I protection
Conductor Material Bare Copper (99.97%)
Jacket Material PVC
Jacket Wall Thickness 0.8mm
Jacket Elongation 150%
Jacket Tensile Strength 10.0N/mm²
Insulation Material PVC (Colour Coded)
Insulation Wall Thickness 0.6mm
Cable Size 1.00mm²
Cable Strands 32
Lock Retention >100N
